 Post subject: Hammerli AR 20 PRO > Review and Range Report.

Sharp Shooter

Offline
User avatar

Joined: Sat Dec 25, 2010 1:47 pm
Posts: 745
Location: Toronto, Canada
Hi all,this is my first Review :mrgreen: I didn't write too much as i am inexperienced. :roll:
INTRODUCTION

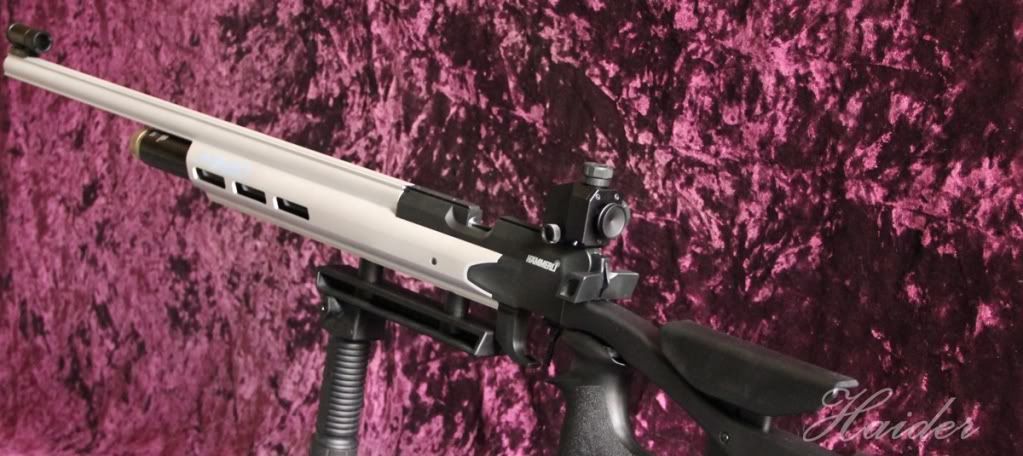

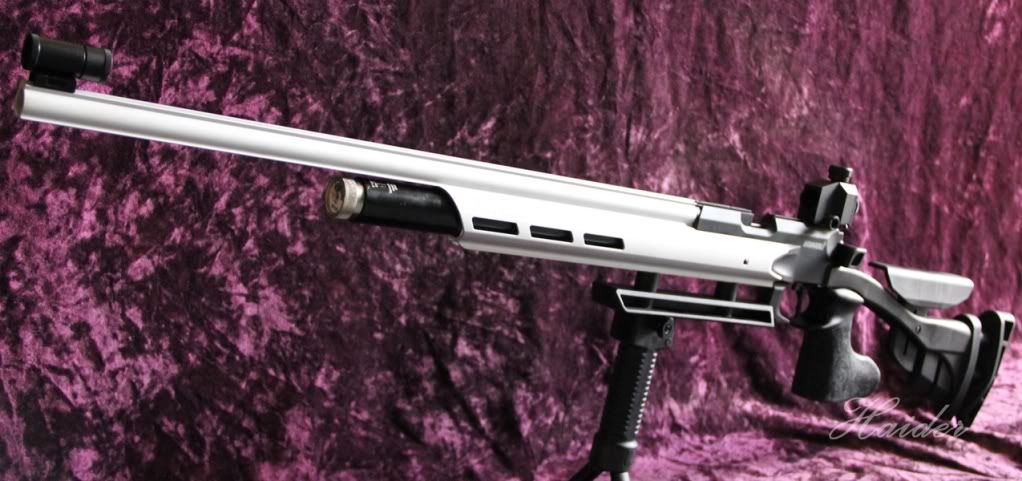

Hammerli AR 20 PRO is a very light air rifle with everything adjustable made by Carl Walther (Germany). It is the perfect choice for the beginners in competition shooting.Specially for youngsters. Its a well known complicated match air rifle made with modern techniques and modern technology. It is only designed for 10 Meter air rifle match.For me its biggest advantage is its light weight and quick reloading which saves a lot of time in competition.
It has:
• 300 bar compressed air system
• Aluminum stock with a wide range of settings
• Ambidextrous receiver and stock
• Variable stock length, cheek piece height and fore-end height
• T-rail for three-position competitions
• Adjustable butt plate
• Ambidextrous cocking piece with release lever
• Wide loading recess with precision feed
• Lothar Walther match barrel
• WALTHER aluminum cylinder with pressure gauge
• Basic weight less than 4,000 g
• Includes sight and accessories


Image Image




Technical Data

System..................................................... Compressed air 300+200 bar
Operating pressure..................................... max. 300 bar
Caliber..................................................... .177 (4,5 mm)
Trigger……………………………………………………........ Two stage adjustable match trigger
Total length (min.)..................................... 1058 mm
Total length (max.)..................................... 1109 mm
Length of sight line..................................... 800 mm
Barrel length.............................................. 500 mm
Height...................................................... 230 mm
Width ...................................................... 60 mm
Weight with cylinder................................... 3970 g
Aluminum cylinder capacity........................... approx. 400 Rounds
Projectile velocity....................................... approx. 170 m/s




Sights
Hammerli AR20 PRO has Walther’s basic competition sights (Match-Diopter and standard foresight holder) whereas normal AR20 has (walther) basic air rifle sights (Basic diopter and standard foresight holder) and this is the only difference between these two rifles. These sights are extremely accurate if used correctly. It takes a bit time to get used to it.
Image Image

Close up view


Cylinder
The cylinder of the air gun is good for about 200 shots after this it is to be refilled. This is quite troublesome at time. Thanks to uncle THI who designed and made a pressure air pump for me. It is much easy to fill the cylinder now.


Trigger
It has a very very light and smooth (two stage) trigger and can be hardened accordingly.

Target
I took 10 shots from 10 meters with the help of rest using RWS R 10 Mach Premium line pellets.


I have practice for 10 M air rifle match with this rifle. I am not very good at it so far because it is difficult shooting. I find it many time more difficult than shooting with pistol from 25 m.
The target in 10 m air rifle is only 0.9 inch diameter which means whole target is smaller than the bull of standard pistol target which is 1" in dia. In this target, bull is only a small dot. I shot these targets from standing position without any support making proper match position but I was not wearing the kit. With proper kit or even if I have only a shooting jacket, I think I can shoot much better but I will have to practice a lot.

Another target shot from 10 M standing.

As you can see the difference in firing from rest and firing from standing postion, I think this gun is very very accurate but I have to practice a lot with it to achieve good standard.


Other AR20 models.
AR 20 (Match Air Rifle)
AR 20 Hybrid (Light Point Rifle/Match Air Rifle)
AR 20 FT (Field Target Air Rifle)

_________________


Last edited by Haider95 on Tue May 22, 2012 6:08 pm, edited 1 time in total.

Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

Sniper

Offline
User avatar

Joined: Mon Oct 25, 2010 10:29 pm
Posts: 1047
Location: Lahore
@Haider95
Excellent review. It is a beautiful airgun. Did you shot this air rifle otherwise also, ie, not from the rest. What is the position in which this rigle is shot in competition? I think it is standing position. Did you shot any target from that position.

Once again, very good effort. :text-bravo:

_________________
There are two kinds of people in the world, my friend: Those with a rope around the neck, and the people who have the job of doing the cutting.


Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

Master at Arms

Offline
User avatar

Joined: Thu Sep 09, 2010 9:31 pm
Posts: 7421
Location: Islamabad, Pakistan
Haider
This is not a bad first review at all. Keep it up.

You can include some of you practice targets in the review and give details of shooting technique that you follow. Just include it in the target shooting portion of the review. :)

_________________
Si vis pacem, para bellum


Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

TGF Expert Panel

Offline

Joined: Sun Sep 12, 2010 10:59 am
Posts: 3950
Location: Karachi, Pakistan
Nice review Haider.
This is still a heavy rifle at about 4kgs! Would like to see your shooting results more frequently, as well as more feedback on this after few months of shooting..

_________________
Some times words are not enough...
A punch is necessary.

(Great Boxer Muhammad Ali).


Top
 Profile

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

Sharp Shooter

Offline
User avatar

Joined: Sat Dec 25, 2010 1:47 pm
Posts: 745
Location: Toronto, Canada
I have updated the review. Is it ok now?

_________________


Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

Moderator

Offline
User avatar

Joined: Thu Sep 09, 2010 7:44 am
Posts: 2868
Location: Sargodha, Pakistan
Haider Nice review!!

4 Kgs IS heavy!!! :o Please post some pics of you shooting this rifle using proper posture and technique for info of forum members!

_________________
It is better to "wear it out", than to "rust it out"!


Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

Sharp Shooter

Offline
User avatar

Joined: Sat Dec 25, 2010 1:47 pm
Posts: 745
Location: Toronto, Canada
This is a very light target air rifle because it is junior model. It has smaller cylinder. Proper target air rifles are between 5.5 to 6.5 kg. :ugeek:

_________________


Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

TGF Managing Committee

Offline
User avatar

Joined: Sun Feb 20, 2011 5:49 pm
Posts: 1499
Location: Karachi, Pakistan
Hiader,

As I said earlier, that's a cool air gun. Considering this as your first review, you have done a tremondous job. Keep up the good work young brother !!

_________________
Hooyah !!


Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

TGF Expert Panel

Offline

Joined: Sun Sep 12, 2010 10:59 am
Posts: 3950
Location: Karachi, Pakistan
Mangloo Ramzani wrote:
4 Kgs IS heavy!!!


I remember KBW sb saying that he would like some of us the shoot a target with the AR20 Pro..I now realize he has his own style of elegant mischief..

_________________
Some times words are not enough...
A punch is necessary.

(Great Boxer Muhammad Ali).


Top
 Profile

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

Master at Arms

Offline
User avatar

Joined: Thu Sep 09, 2010 9:31 pm
Posts: 7421
Location: Islamabad, Pakistan
Saif wrote:
I remember KBW sb saying that he would like some of us the shoot a target with the AR20 Pro..I now realize he has his own style of elegant mischief..
Actually I advised you guys that if ever a kid like Haider invites you to shoot from 10 M with a match air rifle on a less than 1" target with a bull as big as a dot.......... politely decline the offer. Just give him a few advises on how to improve his shooting skills and than suddenly, be reminded of an urgent piece of work..... and leave. This is what I do :mrgreen:

_________________
Si vis pacem, para bellum


Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

Site Admin

Offline
User avatar

Joined: Wed Sep 08, 2010 9:58 pm
Posts: 7950
Location: Karachi, Pakistan
Bravo Haider. Brilliant effort for your first review. Well done :)

Looking forward to more of such inputs from your side in future :)

_________________
Parcham-e-sitāra-o hilāl, Rahbar-e-taraqqī-o kamāl, Tarjumān-e-māzī, shān-e-hāl, jān-e-istiqbāl!, Sāyah-e-khudā-e-zu-l-jalāl

Bolt actions speak louder than words

Sometimes adding 175 grains of boat-tailed diplomacy speeds up Peace Talks


Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

TGF Expert Panel

Offline

Joined: Sun Sep 12, 2010 10:59 am
Posts: 3950
Location: Karachi, Pakistan
SA wrote:
Bravo Haider. Brilliant effort for your first review.


Indeed, it is. Noting that Haider is still in his teens, I am sure this review is at the top level when it comes to what we have here, and better than quite a few here. We look forward to more from Haider.

_________________
Some times words are not enough...
A punch is necessary.

(Great Boxer Muhammad Ali).


Top
 Profile

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

Sharp Shooter

Offline
User avatar

Joined: Sat Dec 25, 2010 1:47 pm
Posts: 745
Location: Toronto, Canada
Thanks every one for your kind comments :D

Saif wrote:
Indeed, it is. Noting that Haider is still in his teens, I am sure this review is at the top level when it comes to what we have here, and better than quite a few here. We look forward to more from Haider



_________________


Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

Sniper

Offline
User avatar

Joined: Mon Oct 25, 2010 10:29 pm
Posts: 1047
Location: Lahore
MythBuster wrote:
@Haider95
What is the position in which this rigle is shot in competition? I think it is standing position. Did you shot any target from that position.

@Haider95
Any feedback on shooting practice and style?

_________________
There are two kinds of people in the world, my friend: Those with a rope around the neck, and the people who have the job of doing the cutting.


Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

Sharp Shooter

Offline
User avatar

Joined: Sat Dec 25, 2010 1:47 pm
Posts: 745
Location: Toronto, Canada
Here you go MythBuster

_________________


Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

Sniper

Offline
User avatar

Joined: Mon Oct 25, 2010 10:29 pm
Posts: 1047
Location: Lahore
Haider95 wrote:
Thanks Haider95. But this is not a comfertable position. "Chuk" par sakti hai :mrgreen:

Just joking. But I think if one do not practice, it is difficult to shoot like this. Why the dont stand straight so that balance is good :roll:

_________________
There are two kinds of people in the world, my friend: Those with a rope around the neck, and the people who have the job of doing the cutting.


Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

Moderator

Offline
User avatar

Joined: Thu Sep 09, 2010 7:44 am
Posts: 2868
Location: Sargodha, Pakistan
MythBuster wrote:
Haider95 wrote:
Thanks Haider95. But this is not a comfertable position. "Chuk" par sakti hai :mrgreen:

Just joking. But I think if one do not practice, it is difficult to shoot like this. Why the dont stand straight so that balance is good :roll:

Because they want their left elbow resting for stability while aiming! ;)

_________________
It is better to "wear it out", than to "rust it out"!


Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

Sharp Shooter

Offline
User avatar

Joined: Sat Dec 25, 2010 1:47 pm
Posts: 745
Location: Toronto, Canada
It seems an uncomfortable position but when one stands correctly it feels so pleasant that one does not get tired. :character-oldtimer: this is what i think.

_________________


Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

Moderator

Offline
User avatar

Joined: Thu Sep 09, 2010 7:44 am
Posts: 2868
Location: Sargodha, Pakistan
Haider95 wrote:
It seems an uncomfortable position but when one stands correctly it feels so pleasant that one does not get tired. :character-oldtimer: this is what i think.

I think that's one of the aims of this position! The left arm is supporting the rifle and in turn the hip is supporting the elbow, a stable stand/rest, of sorts! ;)

_________________
It is better to "wear it out", than to "rust it out"!


Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

Shooter

Offline

Joined: Thu Dec 16, 2010 11:27 am
Posts: 83
Location: Islamabad
@Haider95 brother from where you have purchased this beauty and how you fill the air ...


Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

Sharp Shooter

Offline
User avatar

Joined: Sat Dec 25, 2010 1:47 pm
Posts: 745
Location: Toronto, Canada
My father bought it for me from Germany.
The air is filled with an air pump.

_________________


Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

Shooter

Offline

Joined: Thu Dec 16, 2010 11:27 am
Posts: 83
Location: Islamabad
whats power i mean Fps and cost


Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

Master at Arms

Offline
User avatar

Joined: Thu Sep 09, 2010 9:31 pm
Posts: 7421
Location: Islamabad, Pakistan
@Hamdan Ahmad
Brother its a competition gun and most competition guns are between 350-500 ft / sec. This (fps) terminology is however irrelevant for target guns because they are meant for accuracy only. Everything in a competition air rifle is designed to achieve maximum accuracy and nothing else. Muzzle velocity is more relevant in hunting guns where one needs power.

I am not sure about the availability of this gun in Pakistan. Heard few were sold in around 110-125 k. In USA it costs around 1200-1300 $ (the scoped model is much cheaper as the match diopter sight alone costs around 250 $).

_________________
Si vis pacem, para bellum


Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

Sniper

Offline
User avatar

Joined: Mon Oct 25, 2010 10:29 pm
Posts: 1047
Location: Lahore
@Haider95
Do you still practice with air rifle or you only practice with air pistol now. I did not see any targets of air rifle in your shooting thread. :)
regards

_________________
There are two kinds of people in the world, my friend: Those with a rope around the neck, and the people who have the job of doing the cutting.


Top
 Profile E-mail

 Post subject: Re: Hammerli AR 20 PRO > Review and Range Report.

Rifleman

Offline

Joined: Sat Jul 13, 2013 3:57 am
Posts: 5
Location: Abbotabad, Pakistan
AR 20 lovely weapon .... i hit my ever highest score with this weapon in last Nationals ...... 565 out of 600


Top
 Profile E-mail

Display posts from previous:  Sort by
Post new topic Reply to topic  [ 27 posts ]  Go to page 1, 2  Next

All times are UTC + 5 hours


Who is online

Users browsing this forum: No registered users and 1 guest


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum

Jump to:
Powered by phpBB © 2000, 2002, 2005, 2007 phpBB Group
Template made by DEVPPL -
phpBB SEO
